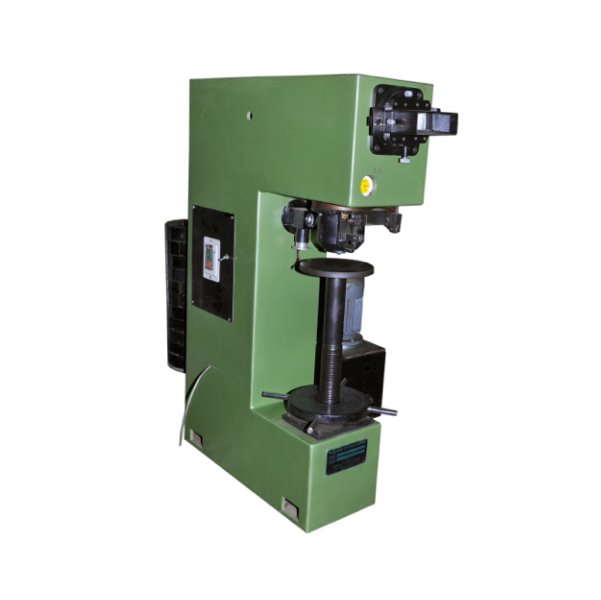

Brinell Hardness Testing Machine – Model O (M-B3000)

Brinell Hardness Testing Machine (Model-O)

The machine has a basic design and operation similar to the B-3000 (H). In addition, it is equipped with an optical device offering 14x magnification to project the diameter of the ball impression onto a glass screen, with a micrometer measuring system providing 0.01 mm accuracy.

The indenter swivels and projects the diameter of the ball impression immediately after the unloading operation, eliminating the need for additional time to measure the ball impression. This provides the actual Brinell hardness number for production testing.

Model:                M – B 3000 (O)

Brand:                    Mechatronic

Applications:       Hardness Testing

Industries:            Aerospace, Automotive, Electronics, Inks and Coatings, Metal Packaging

Materials:              Aluminum, Steel

Basic machine design and operation similar to B – 3000(H). In addition, an ‘Optical Device’ with 14x magnification provided in front to project dia of ball impression on glass screen with a micrometer measuring system with 0.01 mm accuracy. The indenter swivels and projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball impression. This gives real Brinell number of production testing.

SPECIFICATIONUNITM-B3000(H)M-B3000(O)M-B3000(J)
Loads200500 to 3000
in stages of 250
500 to 3000
in stages of 250
500 to 3000
in stages of 250
Initial Loadkgf250NilNil
Max. Testing Heightmm410380254
Depth of Throatmm200200150
Max. Depth of elevating screw of Basemm1801800
Size of Basemm370 x 670370 x 670255 x 495
Machine Heightmm11271185860
Net Weight (approx.)kg.450500210
Driver MotorHP0.33 – 415v/p0.33 – 415v/pNil
MODEL M – B-3000HOJ
Testing table 200 mm1 pc1 pc1 pc
Testing table ‘V’ groove 70 mm1 pc1 pcNil
Ball Holder 5 mm1 pc1 pc1 pc
Ball Holder 10 mm1 pc1 pc1 pc
Test Block HB – 5/7501 pc1 pcNil
Test Block HB – 10/30001 pc1 pc1 pc
Brinell Microscope1 pcNil1 Pc
Allen Spanner7 pcs4 pcs4 pcs
Instruction Manual1 book1 book1 book

Frequently Asked Questions

Find answers to common questions about Mechatronic’s Digital Compression Testing Machine, its features and applications.

What is a Brinell Hardness Testing Machine Model O used for?

It is used to measure the Brinell hardness of materials by measuring the diameter of the ball impression.

What is the magnification of the optical device in Model O?

The machine is equipped with an optical device offering 14x magnification.

What is the measurement accuracy of the micrometer system?

The micrometer measuring system provides an accuracy of 0.01 mm.
